The mathematics, which is genuine
The Fibonacci sequence adds each number to the one before it: 0, 1, 1, 2, 3, 5, 8, 13, 21, 34. Leonardo of Pisa, known as Fibonacci, introduced it to Western Europe in his 1202 book Liber Abaci as a model of rabbit-population growth, with the underlying idea traceable to Indian mathematics centuries earlier.
The trading ratios come from one property: the ratio of consecutive terms converges to the golden ratio, phi = (1 + sqrt 5) / 2, approximately 1.618. From there, every level on the grid is two lines of algebra:
61.8% is 1/phi, which by phi's defining equation also equals phi minus 1
38.2% is 1/phi squared, which equals 1 minus 1/phi
23.6% is approximately 1/phi cubed
78.6% is the square root of 0.618
The extensions continue the pattern: 161.8% is phi itself, 261.8% is phi squared
And then there is the level traders watch most. The 50% line is not derived from the Fibonacci sequence at all. The reference states it plainly: it "is not derived directly from the Fibonacci sequence but holds psychological importance as a midpoint." The most popular number on the Fibonacci grid is not a Fibonacci number, which is worth sitting with for a moment before trusting the grid's mathematical aura.
Draw it by hand once
The construction is one formula. Pick a swing, low L to high H in an uptrend, and each retracement level sits at H minus (H minus L) times r, where r is the ratio:
THE GRID ON A 100 -> 200 SWING
ratio level = 200 - (100 x r)
23.6% 176.40 shallow pullback
38.2% 161.80 moderate pullback
50.0% 150.00 the midpoint (not a Fibonacci number)
61.8% 138.20 the "golden" retracement
78.6% 121.40 deep correction
Extensions project beyond the swing:
161.8% 100 + 1.618 x 100 = 261.80In a downtrend the formula flips to L plus (H minus L) times r, projecting bounce levels instead. Charting platforms do all of this automatically once you click two points, which is precisely where the real problem begins.

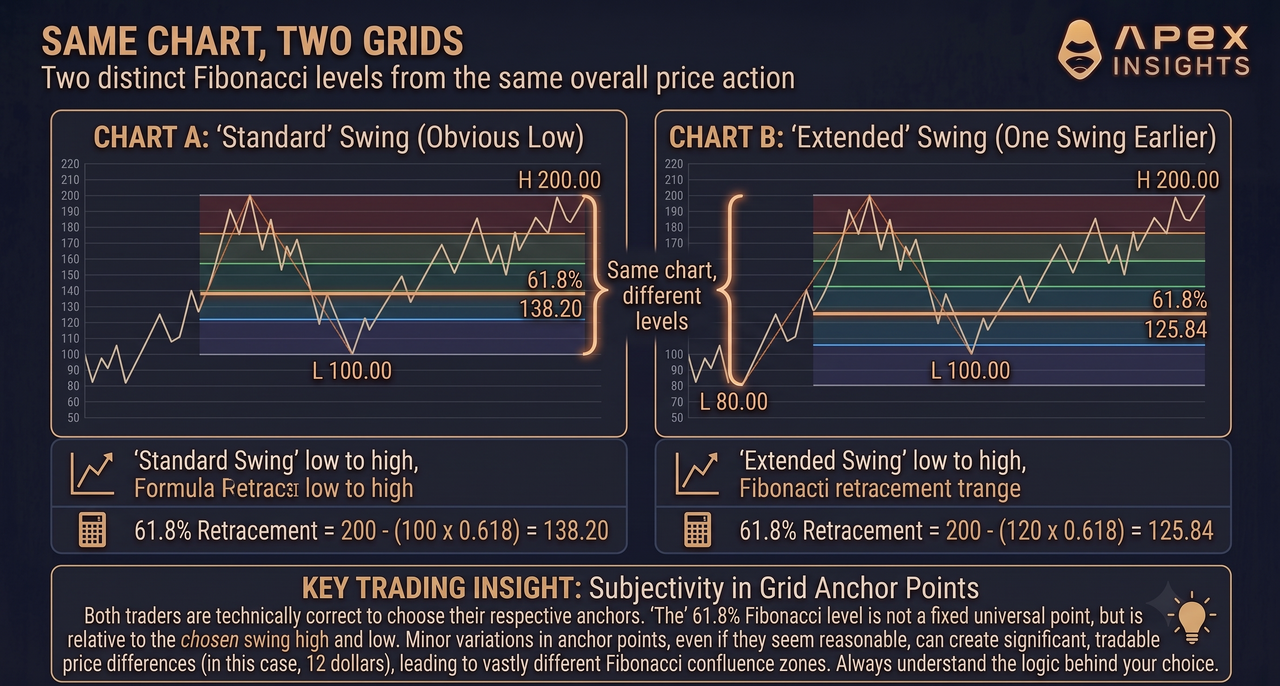

The two-traders problem
Everything about the grid is determined by the two points you click, and the tool does not choose them for you. The reference lists the "subjective nature of identifying swing highs and lows" among the reasons results are inconsistent, and the arithmetic shows how much that subjectivity costs:
This is not a technicality. Nearly every other tool in this series is computed by formula from the data once its settings are chosen; the closest cousin is Part 21's anchored VWAP, where the anchor is also a human choice. A Fibonacci level is a function of a choice the mathematics never sees. Two disciplined traders, same chart, different grids, both "correct."
Why would it work at all?
Be fair to the tool and ask for its mechanism. The critiques in the reference material land on two points. First, there is no causal chain from where these ratios genuinely appear, plant phyllotaxis, geometry, population models, to the behaviour of prices set by human orders, news and institutions; applied without one, the practice is, in the reference's words, "more akin to numerology than predictive science." Second, the ratios were folded into trading culture through Ralph Nelson Elliott's Wave Principle in the 1930s, a framework built on crowd psychology rather than mathematical validation.
The strongest case the tool has is the self-fulfilling prophecy: if enough traders draw the same grid, their orders cluster at its levels, and the levels work because they are watched. Take that argument seriously, because Part 4 showed order clustering is a real, evidenced mechanism, the peer-reviewed order-flow work found exactly this behaviour at round numbers. But notice what the argument concedes: the levels would work because of traders, not because of mathematics, and the mechanism needs everyone to draw the same grid, which the two-traders problem shows is not guaranteed. The evidence that exists for order clustering belongs to round numbers; it has not been shown for Fibonacci ratios in this series' evidence base.
What the testing shows
The record is mixed, and the mix is instructive. The baseline reference reports that "extensive backtests of Fibonacci retracement over thousands of stocks have shown that the retracements values of 38%, 50%, and 62% had been no likelier to appear than any other of the possible retracement values," and that the significance of the levels "could not be confirmed by examining the data" (Fibonacci retracement).
The most detailed test this series could verify first-hand is a 2022 study in the open-access journal Financial Innovation, which ran a Fibonacci-based strategy on leading U.S. energy stocks and energy cryptocurrencies from November 2017 to January 2020 (Gurrib, Nourani & Bhaskaran, 2022). Read both halves of its result. Most energy stocks posted positive raw returns under the strategy, from 4% for SLB to 177% for COP, against a buy-and-hold that lost money on six of the stocks in that window. But the risk-adjusted numbers deflate the headline: "Sharpe values were relatively low; the highest value was 0.139 for COP," with a Sharpe per trade of 0.006, price violations clustered in downtrends, and the authors noting the instrument "does not capture price movements during up and downtrends" respectively. Adding a price-crossover filter did not improve results. A strategy can beat a benchmark that was itself underwater on most names and still pay you 0.14 units of return per unit of risk, which is the kind of edge that disappears into one bad week.
Around those two anchors, the tertiary reference surveys a thinner literature: a 1977 wave analysis finding limited statistical significance for fixed ratios, a 2015 EUR/USD backtest where the 61.8% level performed indistinguishably from random levels, an algorithmic study across major indices reporting no edge over non-Fibonacci zones, and standing methodological complaints of survivorship bias and overfitting, all on top of the swing-selection subjectivity covered above. No Fibonacci rule family appeared in the 2023 crypto study this series has drawn on, so no tested crypto result for the standard retracement signal exists in this series' evidence base.

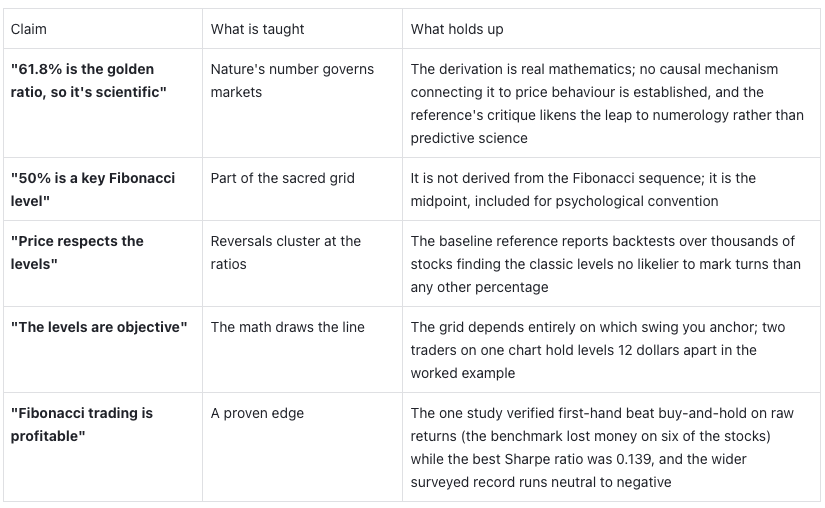

Reputation versus evidence
Using Fibonacci retracement honestly
Treat levels as zones, and demand confluence. The defensible use is as a map of where other traders may be looking, confirmed against things with actual evidence behind them: the round-number clustering of Part 4, structure, and volume.
Anchor the obvious swing. If your rationale is the self-fulfilling one, it only functions when the crowd draws the same grid, so use the swing everyone can see, not a clever one.
Respect the 50% honesty test. Anyone selling you the grid as pure mathematics has to explain why its most-watched line is not a Fibonacci number.
Let structure invalidate, not the ratio. A level "failing" is only information if something you can define fails with it; place stops beyond structure, sized with Part 19's ATR, not a fixed distance behind a ratio.
Backtest your own version before believing it. The evidence is thin enough that any specific fib strategy is effectively untested until you test it.
Common mistakes
Treating the grid as physics - the ratios are real mathematics attached to markets by analogy, not mechanism.
Believing the levels are the same for everyone - they move with the anchor, and anchors are chosen, not computed.
Counting the 50% line as Fibonacci - it is a midpoint convention wearing the grid's costume.
Reading raw returns as proof - the verified study's headline returns came with a best Sharpe of 0.139.
Stacking fib on fib - a retracement confirmed by an extension is one assumption confirming itself.
Fibonacci retracement on ApeX Omni
If you use the grid on a perpetuals chart, use it the way the honest mechanism allows. Draw it from the swing everyone sees, treat each ratio as a zone where other traders may act rather than a line the market owes respect, and only trade it where it lands on evidence this series has actually verified: a round number, a prior structural level from Part 4, a volume shelf from Part 6. On ApeX Omni the leverage arithmetic makes the difference between those two readings expensive: a "61.8% bounce" entry with no structure beneath it is a naked guess with a ratio's name on it, and Part 9 showed what naked guesses cost at high leverage. Size from Part 19's ATR, stop beyond the structure rather than the ratio, trigger on mark per Part 12, and if the grid and the structure disagree, believe the structure. The grid is at best a second opinion; it should never be the trade.
The bottom line
Fibonacci retracement is the strangest tool in this series: the only one whose underlying mathematics is airtight and whose application rests on a leap nobody has closed. Phi is real, the derivations are two lines of algebra each, and the sequence genuinely does govern rabbit populations and sunflower spirals. Prices are not sunflowers. The grid's most-watched level is not a Fibonacci number, its position depends on a human choice of anchor, the best-documented mechanism it could borrow, order clustering, is evidenced at round numbers rather than golden ratios, and the tested record spans "no better than any other percentage" to "beat a mostly-negative buy-and-hold at a best Sharpe of 0.139." Learn the math because it is beautiful and because you should know what you are drawing. Then treat the grid as what the evidence says it is: a popular map of attention, not a law of markets.
Next in this series: the Ichimoku Cloud, the five-line system that closes this second five, and the question of whether a bundle of range midpoints can be more than the sum of its averages.
Frequently asked questions
What are the Fibonacci retracement levels? Horizontal lines drawn at 23.6%, 38.2%, 50%, 61.8% and 78.6% of a price swing, measured between a chosen swing low and swing high. In an uptrend each level sits at the high minus the swing size times the ratio; in a downtrend the formula flips.
Where does 61.8% come from? From the golden ratio, phi, approximately 1.618, which consecutive Fibonacci numbers converge toward. 61.8% is 1/phi, 38.2% is 1/phi squared, and 23.6% is approximately 1/phi cubed. The extensions 161.8% and 261.8% are phi and phi squared.
Is 50% a Fibonacci level? No. The reference material is explicit that it is not derived from the Fibonacci sequence; it is the midpoint of the move, included by convention for its psychological significance.
Do Fibonacci retracements actually work? The tested record is weak to mixed. Backtests reported over thousands of stocks found the classic levels no likelier to mark turns than any other percentage, and the study this series verified first-hand found raw returns that beat a buy-and-hold which lost money on six of the stocks, while the best Sharpe ratio was 0.139.
Why do different traders get different Fibonacci levels? Because the grid is computed from the swing high and low the trader selects, and that selection is subjective. Anchoring one swing earlier or later moves every level on the grid.
How do I draw a Fibonacci retracement in an uptrend? From the swing low to the swing high. The tool then plots the levels between them as potential pullback zones, with the formula high minus (high minus low) times the ratio. In a downtrend, draw high to low and the levels project bounce zones.
Explore more from this series: Part 4: Support and Resistance | Part 13: Do Indicators Actually Work? | Part 21: VWAP Explained | Part 23: Ichimoku Cloud (Coming Soon)
This article is for educational and informational purposes only and is not financial, investment, or legal advice. Do your own research before making any trading decision.
