The five lines, honestly

Here is the entire system. Notice how little machinery it actually uses:

• Tenkan-sen (conversion line): the midpoint of the highest high and lowest low of the last 9 periods

• Kijun-sen (base line): the same midpoint over the last 26 periods

• Senkou Span A (leading span A): the average of Tenkan and Kijun, plotted 26 periods ahead

• Senkou Span B (leading span B): the 52-period midpoint, plotted 26 periods ahead

• Chikou Span (lagging span): today's close, no calculation at all, plotted 26 periods behind

The shaded cloud (kumo) is simply the area between the two Senkou spans: green when A is above B, red when B is above A, thick when they disagree widely, thin when they nearly touch.

Count the ingredients. Three of the five lines are one formula, (highest high + lowest low) / 2, at three different lookbacks. The fourth is an average of the first two. The fifth is a copy of the closing price slid backwards. Five lines, two ingredients: range midpoints and displacement.

Midpoints are not moving averages

The reference is explicit about the design choice that separates Ichimoku from everything in Parts 14 to 16: its lines are "constructed using the 50% point of the highs and lows as opposed to the candle's closing price." That is not a detail. It changes what the lines listen to.

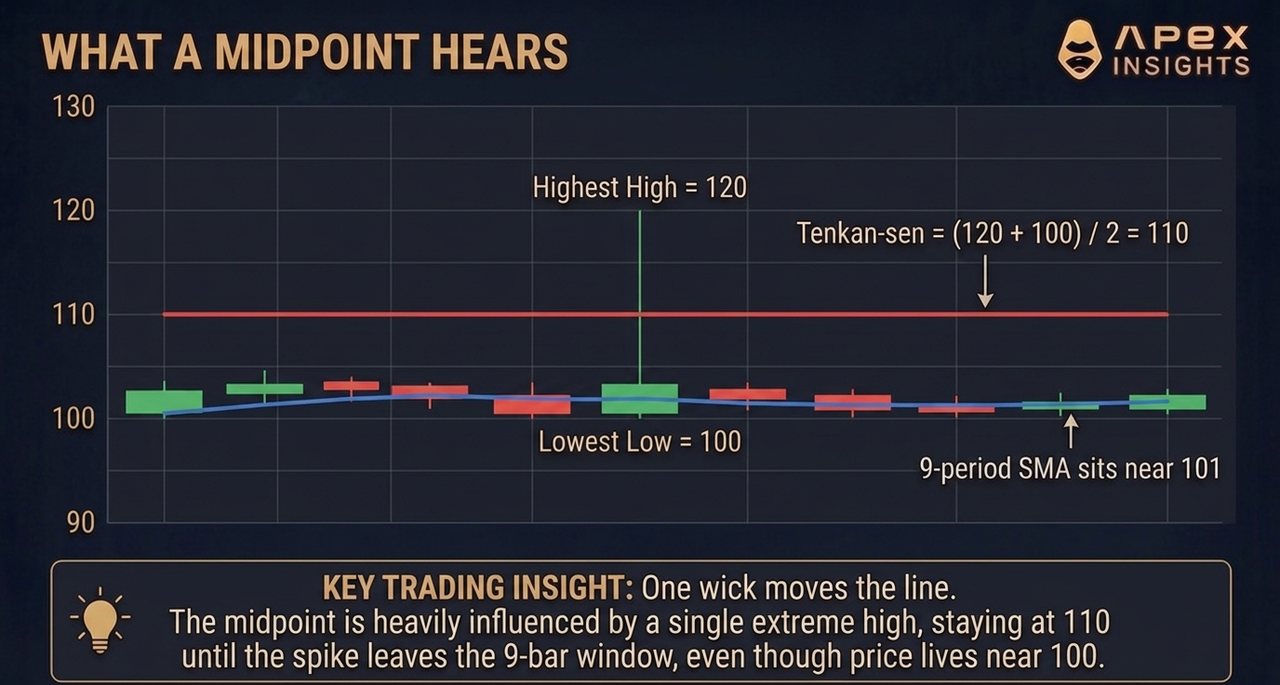

A moving average weights every close; a midpoint listens only to the two extremes and ignores where price actually spent its time. One violent wick relocates the Tenkan for nine bars, the Kijun for twenty-six, and Senkou B for fifty-two. That makes Ichimoku's lines a statement about the recent range, the same raw material as Part 18's stochastic, rather than about typical prices. Whether that is a feature or a bug depends on the market; what it is not is a smoother, better moving average.

The cloud contains no future

The most seductive thing on an Ichimoku chart is the cloud floating ahead of the last candle, apparently projecting support and resistance into next month. Look at the construction again.

 WHERE THE "FUTURE" CLOUD COMES FROM
   today is bar 0
   the cloud drawn above bars +1 to +26 was computed from:
     Senkou A at bar +26  =  average of TODAY's Tenkan and Kijun
                             (Tenkan: bars -8 to 0; Kijun: -25 to 0)
     Senkou B at bar +26  =  midpoint of bars -51 to 0
   Nothing about bars +1 to +26 has been observed, estimated,
   or predicted. The cloud ahead of price is old data,
   drawn 26 bars to the right.

The reference describes the displacement's actual purpose: it separates the projected zone from current bars and reduces clutter, letting you compare today's price against where equilibrium was. That is a legitimate visual idea. But a projection is not a prediction: the cloud under next month's price knows nothing about next month, exactly as Part 13's thesis requires. When traders say "the cloud ahead is support," the honest translation is "the midpoint structure of the last quarter, displaced rightward, is support," and whether old midpoints attract future prices is precisely the kind of claim that needs evidence rather than a prettier chart.

Reading it at one glance

Used as designed, the system's reads stack into one look. The canonical bullish alignment: price above the cloud, Tenkan above Kijun, the Chikou span sitting above the price from 26 bars ago, and a green cloud. The bearish alignment is the mirror. The reference adds the modifiers: crossovers of Tenkan and Kijun carry more conviction outside the cloud than inside it, where signals are treated as neutral; cloud thickness reads as the strength of the projected zone; and a "twist," where the spans cross, flags a possible change of regime. Hosoda's full system goes further, into time cycles, wave counts and price-target formulas; the five lines are what survived into common practice.

None of that changes what the inputs are. Every element of the glance is range midpoints and displaced closes. The one-look chart is a dense summary of where price has been, and like every summary in this series, the density is easy to mistake for information.

What the evidence says

The tested record is thin, and thinner than the indicator's fame suggests. The tertiary reference surveys a study of four major forex pairs from 2003 to 2018 reporting no profitable Ichimoku strategies at the default settings, even after parameter optimization, with results indistinguishable from random entries; the same survey lists a mixed record elsewhere, including an energy-stocks test reporting outperformance with modest Sharpe ratios. Beyond that, backtest write-ups circulate claiming everything from dramatic failure against buy-and-hold to comfortable outperformance, and they trace to trading blogs rather than peer-reviewed tests, the same provenance problem this series flagged under the golden cross and ADX. Ichimoku was not among the four families in the 2023 crypto study this series has drawn on, so no tested crypto result for it exists in this series' evidence base. The reference's own criticisms are more structural: signals blur in ranging markets, the layered components invite subjective, confirmation-biased readings, and the whole apparatus lags because every line is built from completed bars. The honest position mirrors the stochastic's: not proven, not disproven, and structurally incapable of containing more than the range data it is drawn from.

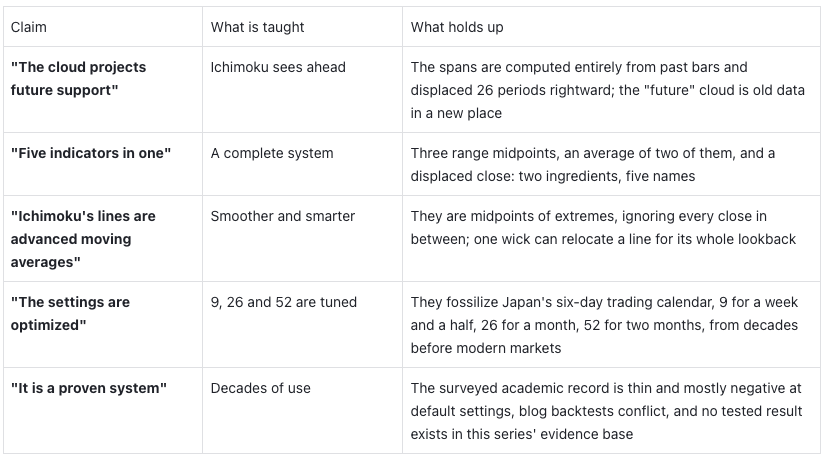

Reputation versus evidence

Using Ichimoku honestly

• Learn the construction before the vocabulary. Every mystique-laden term resolves to a midpoint or a displacement; knowing that is the difference between reading the chart and believing it.

• Read the cloud as displaced history. It summarizes the last quarter's range structure; it does not see next month. Treat "cloud support ahead" as a hypothesis about attention, not a fact about the future.

• Expect the lines to jump on wicks. Midpoints listen to extremes, so a single liquidation spike rewrites the Tenkan for nine bars and Senkou B for fifty-two.

• Question the calendar. The defaults encode a six-day Japanese trading week; the reference notes modern users adapt them for 24/7 markets, which is an admission that the famous numbers are conventions.

• Demand the same evidence you would from one line. A five-line summary of the range carries no more information than the range, and the tested record so far does not privilege it.

The Ichimoku Cloud on ApeX Omni

On a perpetuals venue the calendar problem is sharpest: crypto has no six-day week, no monthly close, and no session for 26 to approximate, so the defaults are a fossil twice over, and the reference notes crypto users often modify them, which quietly concedes the numbers were never laws. If you run the cloud on ApeX Omni, use it the way this second five has used everything: as context, sized and risk-managed by tools that measure rather than promise. The cloud can frame which side of the recent range you are trading on; ATR from Part 19 still prices the stop, ADX from Part 20 still tells you whether trend tactics fit at all, VWAP from Part 21 still grades your fills, and the stop still triggers on the mark price per Part 12. A liquidation wick through a thin cloud will relocate half the lines on the chart, as the midpoint arithmetic requires, and your position should be sized so that redrawing costs you a plan, not an account.

The bottom line, and the end of the run

Ichimoku is the right finale for this series because it is every earlier lesson wearing one costume. It is derived entirely from past prices, like everything since Part 13. Its lines lag and jump by construction, like Part 14's averages and Part 18's ranges. Its aura outruns its evidence, like Part 22's ratios. And its real, defensible use is the modest one every tool here earned: a compact description of where the market has been, never a decree about where it goes. That closes the ten-part indicator run that began with the moving average. The pattern held the whole way: the first five taught what the famous signals actually measure, the second five taught how to measure conditions yourself, and not one tool in either five carried a tested predictive edge in this series' evidence base. Read the lines for what they describe. Take the decision from structure, volume, and the risk arithmetic that decides whether you are still trading next month.

Frequently asked questions

What does Ichimoku Kinko Hyo mean? Roughly "one-look equilibrium chart": ichimoku is "one glance," kinko is "equilibrium," hyo is "chart." The goal was to show trend, momentum and support in a single view.

Who created the Ichimoku Cloud? Goichi Hosoda, a Japanese journalist writing as Ichimoku Sanjin. He began in the late 1930s and spent about thirty years refining the system, publishing it in the late 1960s.

What are the five Ichimoku lines? Tenkan-sen, the 9-period midpoint of highest high and lowest low; Kijun-sen, the 26-period midpoint; Senkou Span A, the average of those two plotted 26 periods ahead; Senkou Span B, the 52-period midpoint plotted 26 periods ahead; and Chikou Span, the close plotted 26 periods behind. The cloud is the area between the two Senkou spans.

Does the Ichimoku cloud predict the future? No. The spans drawn ahead of price are computed entirely from completed bars and shifted 26 periods to the right for readability. The cloud ahead of price is displaced history, not a forecast.

Why 9, 26 and 52? They reflect Japan's old six-day trading week at the time Hosoda built the system: 9 periods for a week and a half, 26 for a trading month, 52 for two months. Modern markets, and especially 24/7 crypto, do not share that calendar.

Does Ichimoku actually work? The record is thin. The surveyed academic tests are mostly negative at default settings, circulating backtests conflict and trace to trading blogs, and no tested result for Ichimoku exists in the evidence base this series has used. Structurally it is a summary of past ranges, so treat it as description rather than prediction.
